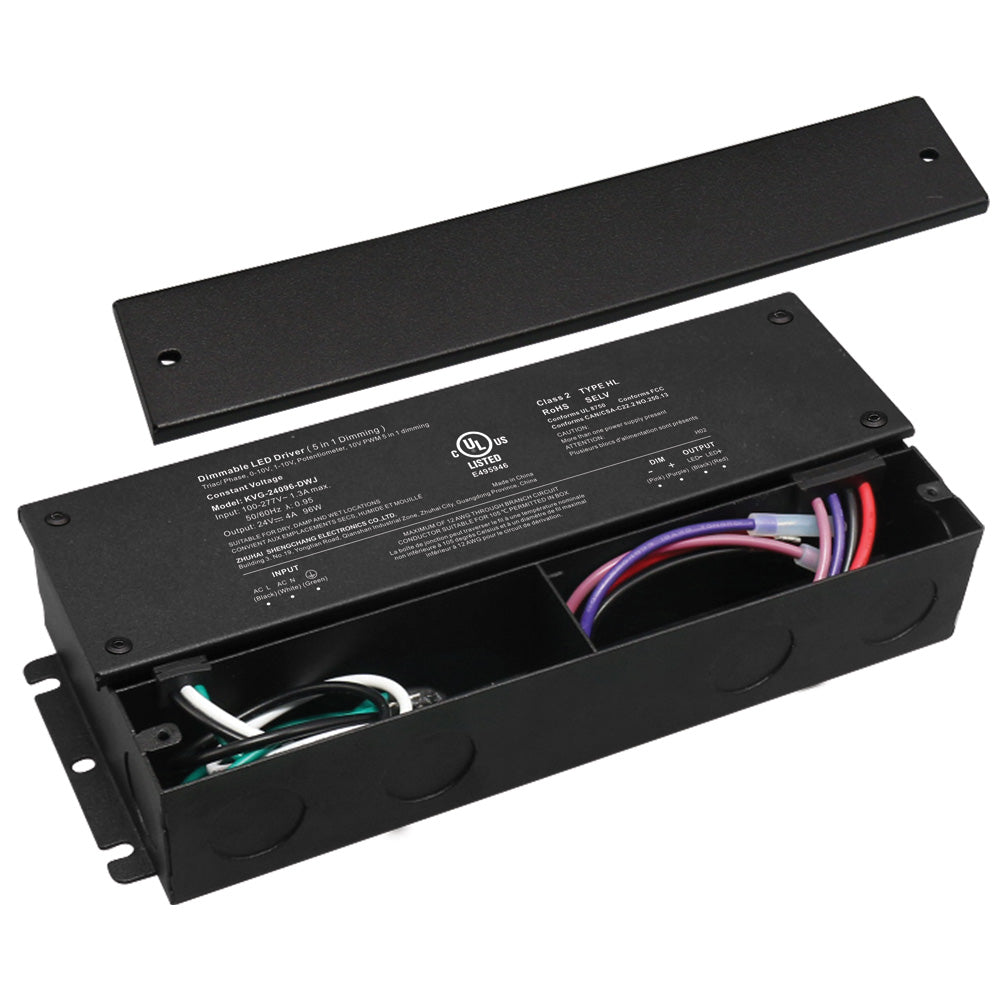

CMQ-DR-KVG-24096-DWJ

TRIAC & 0-10V DIMMABLE LED DRIVER - CONSTANT VOLTAGE
OUTPUT - KVG-DWJ SERIES 96W (UL379) USL, CNL
SWIMMING POOL AND SPA LUMINAIRE POWER SUPPLIES

FEATURES
Output: Constant Voltage
Range: 120VAC
PFC design: Built-in active PFC function
Efficiency: Up to 88%
Protections: Short circuit / Over load / Over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: Driver built-in Junction box, suitable for outdoor locations.
Dimming function: Phase dimming: work with Forward phase , MLV and Reverse phase,
ELV, TRIAC dimmers.
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1.
Dimming range: 0.1-100%

Application: Suitable for LED lighting and moving sign, Swimming Pool and Spa
Luminaire applications

Warranty: 5 years warranty
