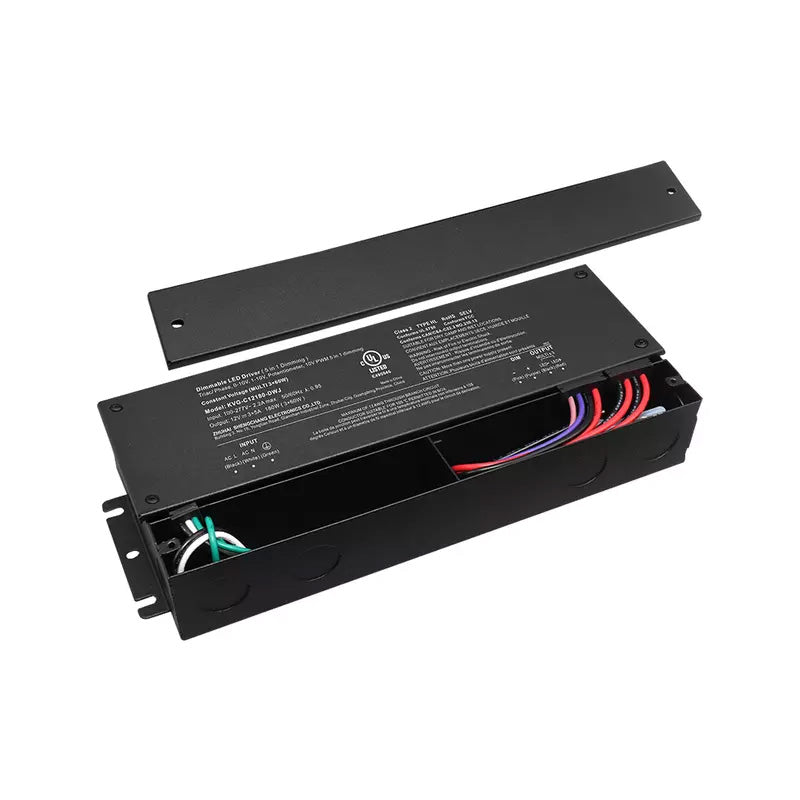

CMQ-DR-KVG-C24192-DWJ (MULTI 2X96W)

TRIAC/0-10V/1-10V/POTENTIOMETER/10V
PWM 5 IN 1 DIMMABLE LED DRIVER CLASS 2
MULTI-CHANNELS 192W

FEATURES
Output: Constant Voltage
Range: 100-277VAC
PFC design: Built-in active PFC function
Efficiency: Up to 89%
Protections: Short circuit / Over load / Over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: For dry, damp and wet location
Dimming function: Phase dimming: work with Forward phase , MLV and Reverse phase,
ELV, TRIAC dimmers.
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1.
Dimming range: 0-100%

Application: Suitable for the application of LED lighting

Warranty: 5 years warranty

Others: PWM output, High power factor PF0.95, flicker-free dimming
