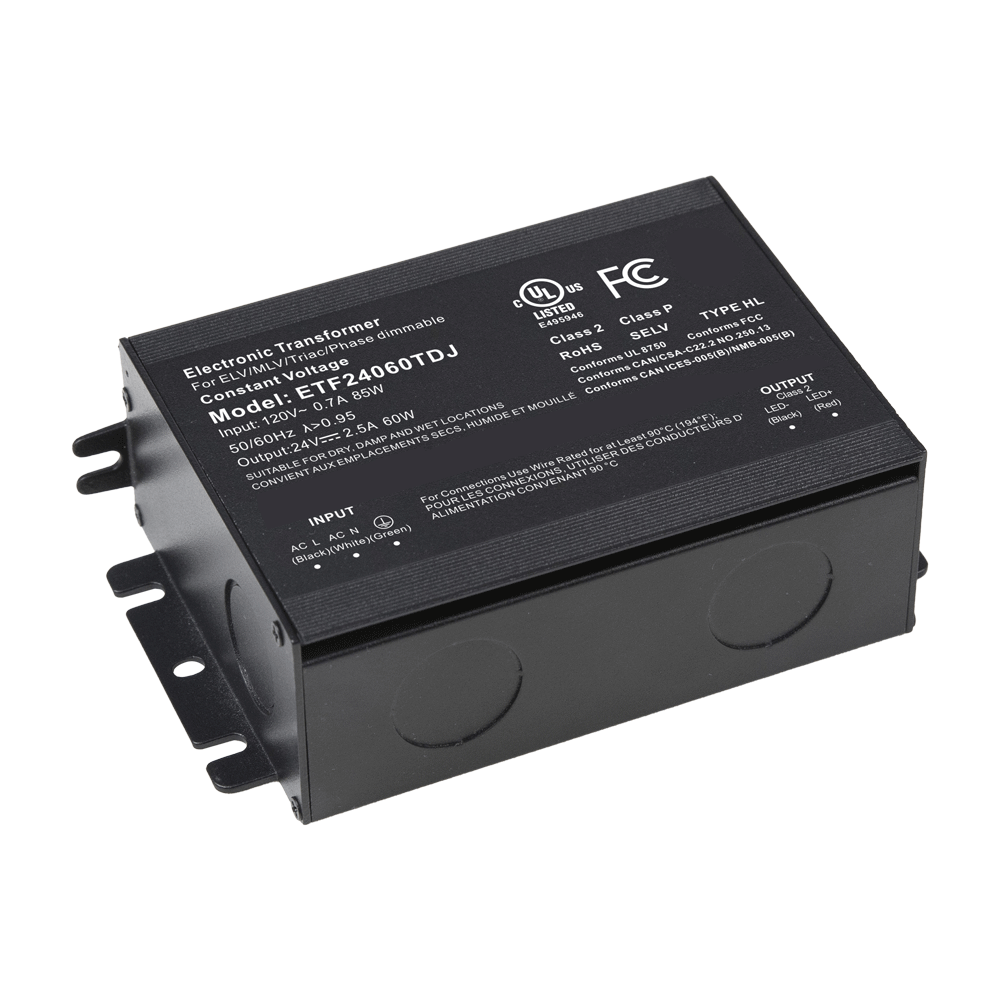

CMQ-DR-MINI-ETF24060TDJ

TRIAC ELV MLV TRANSFORMER
CONSTANT VOLTAGE OUTPUT
ETF-TDJ SERIES 60W

FEATURES
Dimming function: Electronic Transformer Triac/ ELV/ MLV dimming
Dimming range: 0-100%
Waterproof performance: For dry, damp and wet locations
Input: 120VAC
THD: THD<20%@120V Max. load
Output type: Constant voltage
Small size: 126.4x80x40.4 mm / 4.97x3.15x1.59 inch(L*W*H)
Loading: Super low loading request, works perfectly at 20-100% load
Protections: Short circuit / Over load
Compatibility: Compatible with popular dimmers in the market, Lutron-CL, Diva
series and so on.

Application:
• LED strip/ LED tape/ LED module
• Residential Lighting
• Commercial Lighting

Warranty: 5 years warranty
